Pystysorvit
Pystysorvit – oikea valinta suuriin osiin ja monimutkaiseen koneistukseen
Kun työstettävänä on laajoja kokonaisuuksia tai keskikokoisia osia, joiden halkaisija on suuri ja pituus lyhyt, pystysorvi on usein paras valinta. Sama pätee myös silloin, kun työstetään työkappaleita, jotka on haastava kiinnittää vaakakaraisiin sorveihin. Pystysuuntaisia sorveja käytetään yleensä halkaisijaltaan noin Ø400 mm:stä aina Ø14 metriin asti.
Duroc Machine Tool tarjoaa laajan valikoiman pystysorveja alan johtavilta merkeiltä. Valikoimamme sisältää sekä yksi- että kaksioispylväis sorveja, jotka tarjoavat kestäviä ja joustavia ratkaisuja. Kun valitset pystysorvin, saat kestävyyttä ja joustavuutta sekä sinulla on mahdollisuus työstää monimutkaisia työkappaleita turvallisesti ja kustannustehokkaasti.
Pystysorvi - erinomainen ergonomia yhdistettynä pieneen tilantarpeeseen
Työkappale voidaan asettaa pystysorviin niin, ettei sitä tarvitse pitää prosessin aikana epämukavassa asennossa. Tämän lisäksi pystysorvilla on myös pieni tuotantotilan tarve.
PUMA V400L
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 496
- Max. Turning Length (mm): 461
PUMA V400ML
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 420
- Max. Turning Length (mm): 400
PUMA V400ML
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 420
- Max. Turning Length (mm): 400
PUMA V400MR
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 420
- Max. Turning Length (mm): 400
PUMA V400MR
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 420
- Max. Turning Length (mm): 400
PUMA V400PR
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 496
- Max. Turning Length (mm): 461
PUMA V400R
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 496
- Max. Turning Length (mm): 461
PUMA V400R
- Travels - X Axis Travel distance (mm): 268
- Travels - Z Axis Travel distance (mm): 488
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 496
- Max. Turning Length (mm): 461
PUMA V8300-2SP
- Travels - X Axis Travel distance (mm): 495
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780

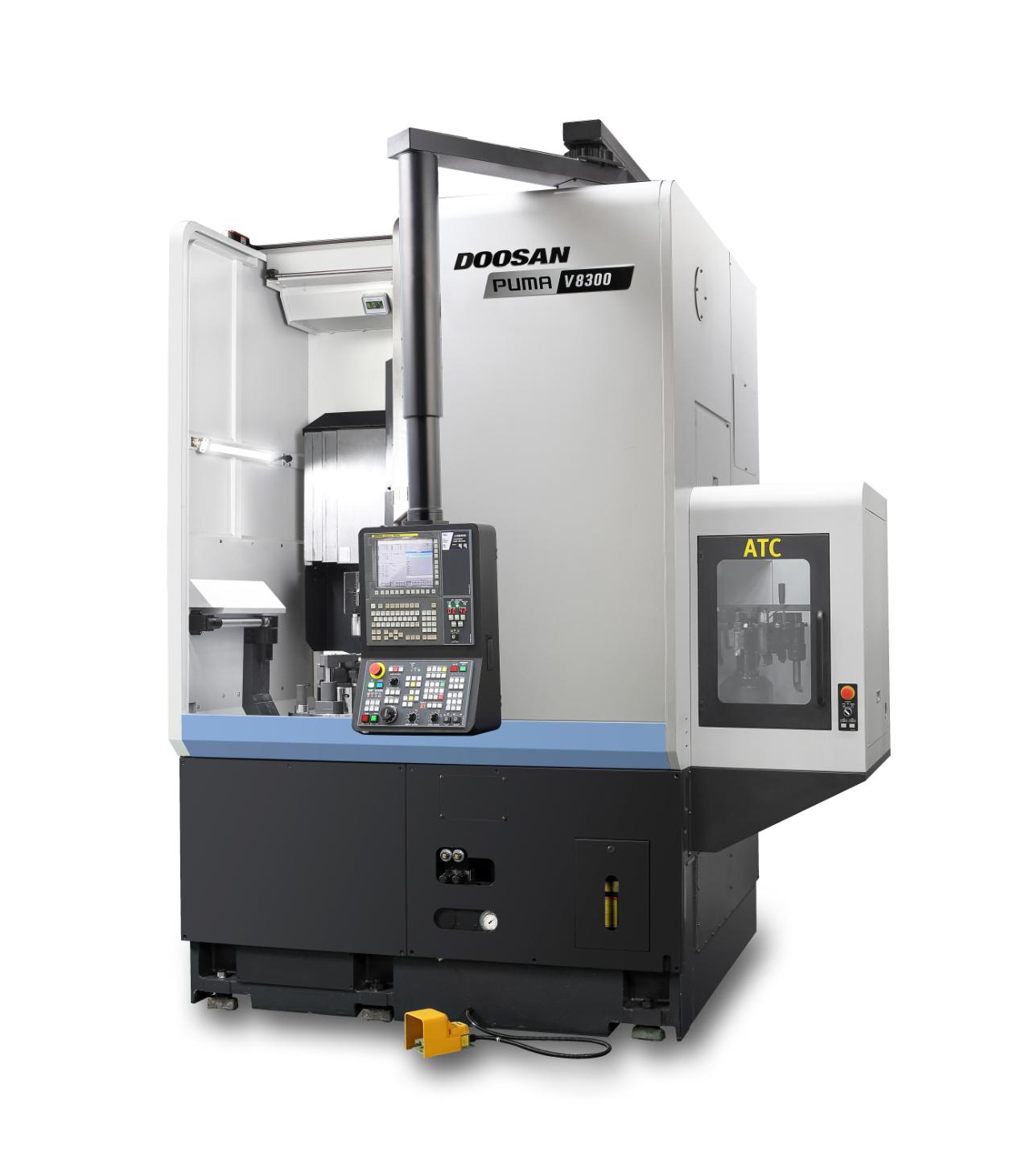

PUMA V8300L
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300L
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300L / ATC
- Travels - X Axis Travel distance (mm): 495
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300M-2SP
- Travels - X Axis Travel distance (mm): 495
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300ML
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300ML
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300MR
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300MR
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300MR
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300R
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA V8300R
- Travels - X Axis Travel distance (mm): 495
- Travels - Z Axis Travel distance (mm): 780
- Chuck size (mm): 381
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 780
PUMA VT1100
- Travels - X Axis Travel distance (mm): 580
- Travels - Z Axis Travel distance (mm): 1000
- Chuck size (mm): 800
- Max. Turning Diameter (mm): 1100
- Max. Turning Length (mm): 960
PUMA VT1100M
- Travels - X Axis Travel distance (mm): 580
- Travels - Z Axis Travel distance (mm): 1000
- Chuck size (mm): 800
- Max. Turning Diameter (mm): 1100
- Max. Turning Length (mm): 960
PUMA VT1100M
- Travels - X Axis Travel distance (mm): 580
- Travels - Z Axis Travel distance (mm): 1000
- Chuck size (mm): 800
- Max. Turning Diameter (mm): 1100
- Max. Turning Length (mm): 960
PUMA VTR1012F
- Travels - X Axis Travel distance (mm): 1425
- Travels - Z Axis Travel distance (mm): 700
- Max. Turning Diameter (mm): 1250
- Max. Turning Length (mm): 750
PUMA VTR1012F
- Travels - X Axis Travel distance (mm): 1425
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 700
- Chuck size (mm):
- Max. Turning Diameter (mm): 1250
- Max. Turning Length (mm): 750
PUMA VTR1012FM
- Travels - X Axis Travel distance (mm): 1425
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 700
- Chuck size (mm):
- Max. Turning Diameter (mm): 1250
- Max. Turning Length (mm): 750
PUMA VTR1216
- Travels - X Axis Travel distance (mm): 205
- Travels - Z Axis Travel distance (mm): 340
- Chuck size (mm): 152.4
- Max. Turning Diameter (mm): 350
- Max. Turning Length (mm): 330
PUMA VTR1216F
- Travels - X Axis Travel distance (mm): 1700
- Travels - Z Axis Travel distance (mm): 900
- Chuck size (mm): 1270
- Max. Turning Diameter (mm): 1600
- Max. Turning Length (mm): 950
PUMA VTR1216F
- Travels - X Axis Travel distance (mm): 1700
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 900
- Chuck size (mm): 1270
- Max. Turning Diameter (mm): 1600
- Max. Turning Length (mm): 950
